Structural Retrofitting Types and Techniques for Concrete Buildings

Last Updated on January 30, 2026

Structural retrofitting is the process of upgrading existing concrete buildings to improve their strength, stiffness, ductility, and load-path performance under current loading and seismic demands. Engineers use structural retrofitting when a building no longer meets acceptable performance levels due to aging, outdated design standards, increased loads, or identified seismic vulnerabilities.

Structural retrofitting focuses on how a building behaves, not just on repairing visible damage. Common retrofit strategies aim to:

• Increase load-carrying capacity
• Control excessive drift and deformation
• Improve ductile behavior during earthquakes
• Ensure reliable force transfer to foundations

This guide explains the main types of structural retrofitting, the techniques used in concrete buildings, and how engineers select the appropriate approach based on identified structural deficiencies and performance objectives.

What is Structural Retrofitting in Concrete Buildings?

Structural retrofitting upgrades an existing concrete building’s structural behavior so it can safely resist gravity, wind, and earthquake forces. Unlike repairs, which restore damaged components, retrofitting improves overall performance by modifying strength, stiffness, ductility, or load-path continuity.

Structural retrofitting is commonly required when:

• Buildings were designed under outdated structural codes
• Seismic vulnerabilities are identified in existing buildings
• Material deterioration affects load-bearing capacity
• Changes in use increase structural demand

Structural retrofit design and evaluation are commonly aligned with recognized seismic evaluation and retrofit standards, such as those published by the American Society of Civil Engineers (ASCE).

A clear definition of retrofitting sets the stage for identifying the specific performance problems that retrofit strategies must address.

What Structural Problems Does Retrofitting Solve in Concrete Buildings?

Structural retrofitting addresses specific performance deficiencies that limit how a concrete building responds to everyday loads and extreme events. These problems are typically identified during structural evaluations and directly influence which retrofit strategies are appropriate.

• Insufficient lateral strength: Buildings may lack adequate resistance to earthquake or wind forces, increasing the risk of structural damage or collapse.
• Excessive story drift: Flexible structural systems can experience large horizontal movements, leading to damage in both structural and non-structural components.
• Poor ductility and brittle behavior: Older detailing practices often result in sudden failure modes that do not allow structures to dissipate energy safely during seismic events.
• Discontinuous or weak load paths: Inadequate connections between floors, frames, walls, and foundations prevent forces from being transferred reliably through the structure.
• Outdated design assumptions: Many existing concrete buildings were designed under earlier codes that did not reflect current understanding of seismic demand or material behavior.

These deficiencies are rarely isolated. A single building may exhibit multiple issues that interact during loading, which is why identifying the dominant performance problem is critical before selecting any retrofitting technique.

This diagnostic step creates the foundation for determining whether a project requires strengthening, stiffening, ductility improvement, demand reduction, or a combination of approaches.

Once the underlying problems are clearly defined, attention turns to how engineers evaluate options and align retrofit techniques with specific structural goals.

How Engineers Choose the Right Structural Retrofitting Technique?

Engineers select retrofitting techniques by matching identified deficiencies with clearly defined performance objectives, not by defaulting to commonly used solutions. The goal is to apply the least intrusive method that reliably addresses the dominant structural problem.

• Structural system type: The existing system—moment frame, shear wall, dual system, or hybrid—sets the baseline for how loads are resisted and limits which retrofit options are effective.
• Nature of the deficiency
  • Strength deficiencies point toward member strengthening solutions
  • Excessive drift favors stiffening strategies
  • Brittle behavior requires ductility-focused upgrades
  • Load-transfer issues demand connection and diaphragm improvements
• Building configuration and constraints : Irregular geometry, vertical discontinuities, and foundation limitations often eliminate otherwise viable techniques.
• Occupancy and operational limits: Retrofit strategies must align with allowable downtime, access restrictions, and life-safety requirements during construction.
• Performance objective: Whether the goal is collapse prevention, life safety, or damage control determines how aggressive the intervention must be.

Engineers typically evaluate multiple retrofit concepts against these factors before narrowing the options. This comparative approach ensures that the selected technique improves performance without introducing new vulnerabilities or unnecessary disruption. For seismic-driven projects, these decisions are often aligned with broader seismic retrofit strategies rather than isolated component upgrades.

With selection criteria established, retrofit methods can be grouped into broader categories based on how they influence structural behavior.

Main Types of Structural Retrofitting for Concrete Structures

Structural retrofitting techniques for concrete buildings are commonly grouped by how they modify structural behavior, rather than by construction method. This classification helps engineers align retrofit strategies with the specific performance problems identified during evaluation.

• Strengthening retrofits: Increase the load-carrying capacity of existing members or systems. These approaches are used when columns, beams, or walls cannot safely resist expected forces.
• Stiffening retrofits: Reduce excessive deformation by increasing lateral stiffness. Stiffening is typically applied when drift control governs performance rather than member strength.
• Ductility improvement retrofits: Enhance a structure’s ability to deform without sudden failure. These upgrades focus on improving energy dissipation and preventing brittle behavior during seismic events.
• Demand-reduction retrofits: Lower the forces transmitted to the structure by altering how seismic energy enters or is absorbed by the building, rather than increasing structural capacity.
• Load-path and connection upgrades: Improve continuity between diaphragms, vertical elements, and foundations to ensure forces are transferred reliably throughout the structure.

Most retrofit projects combine more than one type to achieve balanced performance. For example, a building may require both stiffening to control drift and strengthening to address localized member deficiencies. Understanding these categories makes it easier to evaluate individual techniques and recognize where each is most effective.

Retrofit strategies are categorized by whether they increase a member’s capacity, reduce building movement, or improve energy absorption.

With these retrofit types defined, the discussion naturally shifts toward the specific techniques used to achieve strengthening, stiffening, ductility improvement, and demand reduction in concrete buildings.

Structural Strengthening Techniques for Concrete Buildings

Strengthening techniques are used when existing concrete members or systems lack sufficient load-carrying capacity. These methods focus on increasing strength without fundamentally changing the overall structural system.

Choosing the right strengthening method depends on space constraints, required load increase, and construction speed.

1. Concrete Jacketing for Structural Strengthening

Concrete jacketing strengthens columns or beams by encasing them with new reinforced concrete. This increases cross-sectional area, confinement, and load capacity, making it suitable for members with axial, shear, or combined deficiencies.

• Commonly applied to older reinforced concrete frames
• Improves both strength and ductility
• Increases member size and construction impact

Concrete jacketing is often selected when deficiencies are severe and long-term reliability is prioritized over construction disruption.

2. Steel Jacketing for Concrete Structural Members

Steel jacketing uses steel plates or sections to enhance the strength and confinement of existing concrete members. It is frequently used where space constraints limit the feasibility of concrete enlargement.

• Effective for rapid strength upgrades
• Minimal increase in member dimensions
• Requires corrosion protection and fire resistance measures

Steel jacketing is typically chosen when construction speed and dimensional control are critical.

3. FRP Wrapping for Strengthening Concrete Structures

FRP (Fiber-Reinforced Polymer) wrapping strengthens concrete members by externally confining them with high-strength composite materials. It is commonly used for moderate deficiencies where minimal added weight and disruption are required.

• Lightweight and minimally invasive
• Effective for confinement and shear enhancement
• Performance depends on surface preparation and detailing

FRP solutions are often evaluated alongside other strengthening methods during early retrofit concept selection.

More detailed construction considerations for these methods are typically addressed during retrofit planning and execution.

Strengthening techniques address capacity limitations, but when excessive movement governs performance, engineers turn their attention to methods that control deformation rather than simply increasing strength.

Structural Stiffening Techniques for Drift Control

Stiffening techniques are used when a concrete building experiences excessive lateral deformation under seismic or wind loading. These methods focus on reducing drift rather than increasing member strength, helping limit damage and improve overall stability.

Adding Shear Walls to Increase Structural Stiffness

Shear walls are introduced to significantly increase lateral stiffness and reduce interstory drift. They are commonly added when existing frame systems cannot adequately control deformation.

• Effective for controlling building sway
• Must be placed to minimize torsional effects
• Require clear load transfer to foundations

See our post shear wall behavior and configurations for deeper technical context.

Steel Braced Frames in Concrete Buildings

Steel braced frames can be integrated into concrete structures to supplement lateral resistance. These hybrid systems are often used where architectural constraints limit the addition of concrete walls.

• Provides efficient stiffness increase
• Can be installed within existing bays
• Requires careful connection design

Diaphragm and Collector Strengthening for Load Transfer

Floor diaphragms and collectors distribute lateral forces to vertical resisting elements. Strengthening these components ensures that newly added walls or frames engage properly during loading.

• Improves load-path continuity
• Addresses force transfer weaknesses
• Often paired with other stiffening upgrades

Stiffening techniques are effective for controlling deformation, but some buildings also require improvements in failure behavior and energy dissipation, which leads to ductility-focused retrofit strategies.

Ductility and Energy Dissipation Techniques in Structural Retrofitting

Ductility-focused retrofits are applied when a concrete building is prone to brittle failure and lacks the ability to deform safely under seismic loading. These techniques do not primarily increase strength or stiffness; instead, they improve how the structure absorbs and dissipates energy.

 Confinement and Detailing Improvements for Ductile Behavior

Many older concrete buildings were constructed with reinforcement details that do not support ductile behavior. Retrofitting may focus on improving confinement in critical regions to allow controlled deformation.

• Enhances energy dissipation capacity
• Reduces risk of sudden, brittle failure
• Common in columns, beam–column joints, and boundary elements

These upgrades are often combined with strengthening or stiffening methods to achieve balanced seismic performance.

Seismic Dampers for Energy Dissipation

Seismic dampers reduce structural response by dissipating energy during dynamic motion. Rather than resisting forces directly, they limit the amplitude of movement transmitted to the structure.

• Effective for reducing seismic demand
• Useful where drift control alone is insufficient
• Typically integrated into existing frames or bracing systems

Damping systems are most effective when selected as part of a broader seismic retrofit strategy rather than as standalone solutions.

While ductility and damping improve how a structure responds to loading, some retrofit approaches focus on reducing the forces entering the building altogether, which leads to demand-reduction techniques.

Seismic Demand Reduction Techniques for Existing Buildings

Demand-reduction techniques focus on lowering the seismic forces transmitted to a concrete building, rather than increasing the capacity of structural elements. These approaches are typically considered when conventional strengthening or stiffening alone would be inefficient or overly disruptive.

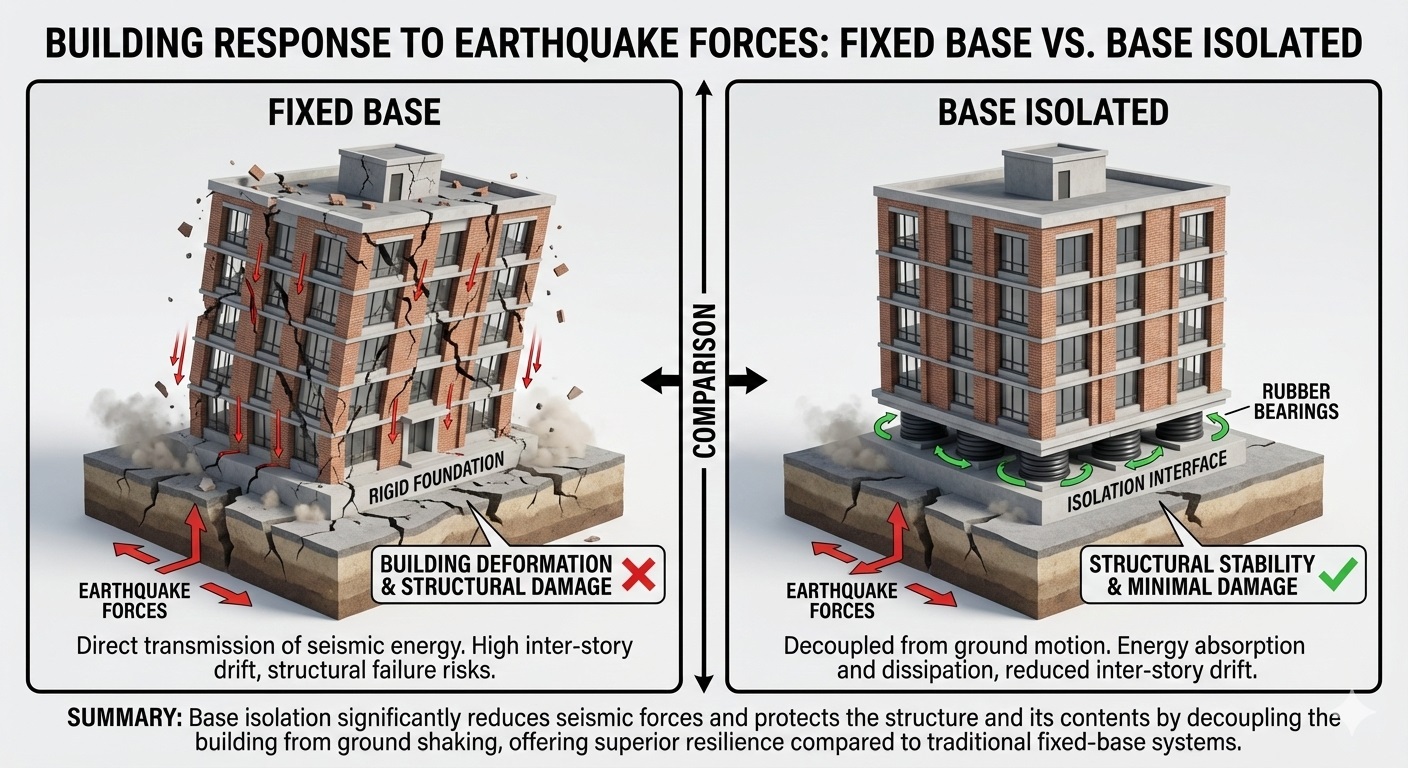

Base Isolation for Seismic Demand Reduction

Base isolation reduces seismic demand by separating the building from ground motion at its foundation level. Isolation systems limit the transfer of earthquake energy into the superstructure, resulting in lower forces and reduced damage.

• Most effective for essential or high-value buildings
• Significantly reduces acceleration and drift demands
• Requires substantial planning and foundation-level intervention

Base isolation is generally evaluated as part of a comprehensive seismic retrofit strategy rather than as a standalone upgrade.

 Mass Reduction to Lower Seismic Forces

Seismic forces are proportional to building mass. Reducing mass lowers demand by decreasing the inertia forces generated during ground shaking.

• Achieved by removing heavy non-essential components
• May involve roof, façade, or interior modifications
• Requires careful evaluation to avoid introducing new weaknesses

Demand-reduction techniques are powerful but selective. They are typically reserved for situations where reducing seismic input provides greater benefit than increasing structural resistance.

After addressing strength, stiffness, ductility, and demand, retrofit planning must consider how these strategies are evaluated, sequenced, and implemented as a coordinated process.

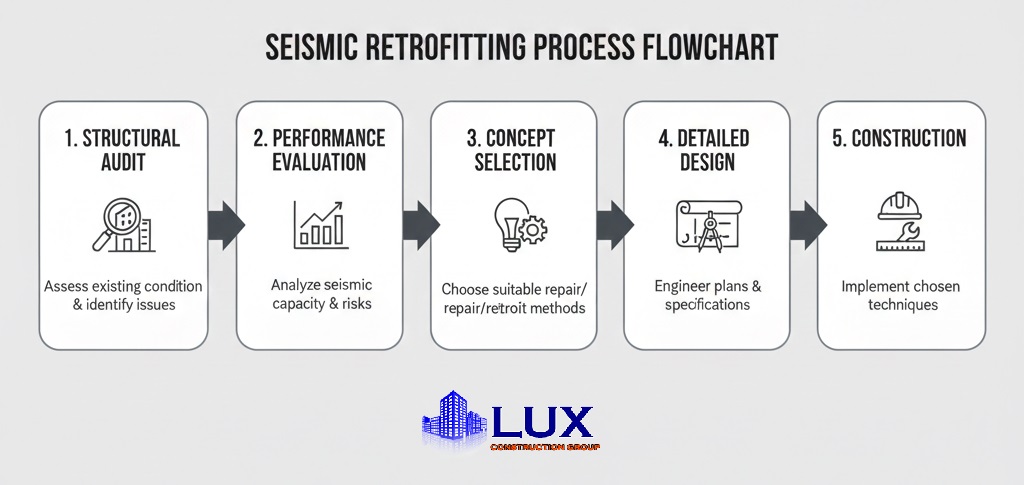

Structural Retrofitting Process: From Evaluation to Implementation

A structured, evaluation-first approach ensures that the chosen retrofit technique addresses actual structural risks.

The structural retrofitting process follows a sequenced, evaluation-driven workflow that ensures retrofit techniques address verified deficiencies rather than assumptions. Each phase builds on the previous one to reduce risk and avoid unnecessary interventions.

• Preliminary structural assessment: Engineers review drawings, perform site observations, and identify visible irregularities that may affect structural performance. This stage establishes the baseline understanding of the building.
• Deficiency identification and performance evaluation: Structural analysis is used to determine where strength, stiffness, ductility, or load-path continuity is inadequate under expected demands.
• Development of retrofit concepts: Multiple retrofit strategies are outlined and compared based on effectiveness, feasibility, and compatibility with the existing structure.
• Design and approvals: Selected concepts are developed into detailed designs suitable for review and implementation. Coordination with other disciplines occurs at this stage.
• Construction and verification: Retrofit measures are installed according to the approved design, with inspections verifying that intended performance objectives are met.

A detailed investigation is central to this process, which is why retrofit planning commonly begins with a formal structural audit of a building.

Once the process framework is understood, it becomes easier to recognize where retrofit projects often encounter challenges and avoidable errors.

Common Structural Retrofitting Mistakes to Avoid

Many retrofit projects underperform not because of the selected technique, but because of decision and coordination errors made earlier in the process. Avoiding these common mistakes helps ensure retrofit measures deliver the intended performance improvements.

• Selecting a technique before identifying deficiencies: Choosing solutions without clearly understanding whether the issue is strength, stiffness, ductility, or load transfer often leads to ineffective or excessive retrofits.
• Focusing on individual members instead of system behavior: Strengthening isolated columns or beams without considering the overall load path can shift forces and create new vulnerabilities elsewhere in the structure.
• Ignoring diaphragm and collector capacity: Upgrading vertical elements without ensuring floors can transfer forces prevents retrofit systems from engaging as intended.
• Overlooking foundation limitations: Increased forces from strengthening or stiffening may exceed foundation capacity if soil and footing behavior are not evaluated together with the superstructure.
• Underestimating occupancy and construction constraints: Retrofit strategies that disrupt building operations can become impractical if phasing, access, and safety requirements are not addressed early.

Recognizing these pitfalls reinforces why retrofit planning must remain performance-driven rather than method-driven.

With common errors addressed, decision-making can shift toward broader considerations such as relative cost drivers and feasibility, which influence how retrofit strategies are prioritized.

High-Level Cost Considerations in Structural Retrofitting

The cost of structural retrofitting varies widely because it is driven by building conditions and retrofit objectives, not by a single technique alone. At a planning level, costs are best understood in relative terms rather than fixed numbers.

• Extent of deficiencies: Localized member upgrades typically require less intervention than system-level retrofits affecting multiple floors or load paths.
• Selected retrofit strategy: Strengthening, stiffening, ductility improvement, and demand-reduction approaches each involve different material and construction requirements.
• Building size and configuration: Taller or irregular buildings generally require more extensive analysis and coordination.
• Access and constructability: Limited access, occupied conditions, or architectural constraints can significantly influence effort and sequencing.
• Foundation and soil considerations: Retrofit measures that increase forces may require additional work at the foundation level.

Because these factors vary from one building to another, detailed pricing is typically developed after a project-specific evaluation. For cost discussions tied to seismic upgrades, see our post on seismic retrofit cost considerations.

Understanding cost drivers at a high level helps frame feasibility, but determining when to involve specialized professionals is equally important for successful retrofit planning.

When to Involve a Structural Retrofit Contractor in Los Angeles?

If you are planning a structural retrofit, working with an experienced retrofitting contractor in Los Angeles can help navigate local building conditions, aging structures, and seismic performance requirements common across the region.

Lux Construction Group supports residential and commercial retrofit projects by coordinating closely with the project’s structural engineer. Their involvement typically begins after retrofit objectives are defined, focusing on constructability, sequencing, and site-specific constraints rather than altering engineering decisions.

Before any retrofit work is performed, a detailed retrofit inspection evaluates the existing structure, materials, and load-support systems. This assessment allows retrofit strategies to be selected based on actual building conditions, whether the structure is concrete, masonry, or a hybrid system.

As buildings age and design expectations evolve due to financial, regulatory, and technological changes, certain structural components may require retrofitting or replacement to maintain acceptable performance throughout their intended service life.

Structural Retrofitting FAQs for Concrete Buildings

How is the need for structural retrofitting determined?

Engineers determine retrofit need by evaluating a building’s structural performance against current load and seismic demands. The assessment identifies deficiencies in strength, stiffness, ductility, or load paths that prevent acceptable performance.

What building tests are used before designing a retrofit?

Structural retrofit design relies on material testing, site investigation, and analytical modeling. These tests determine concrete strength, reinforcement details, and existing load behavior to support accurate retrofit decisions.

Does structural retrofitting increase a building’s lifespan?

Structural retrofitting extends a building’s lifespan by improving its ability to resist loads and deterioration. Enhanced performance reduces failure risk and allows the structure to remain functional under future demands.

Is retrofitting always preferable to rebuilding a concrete structure?

Retrofitting is preferable when the existing structure can meet performance goals through targeted upgrades. Rebuilding is considered only when deficiencies are too extensive or retrofit constraints outweigh performance benefits.

How does structural retrofitting affect building insurance and risk?

Structural retrofitting reduces building risk by improving seismic and load performance. Lower risk exposure can positively influence insurance evaluations by demonstrating improved structural reliability.
